Tig Welding Torch Sizes

Welcome to our comprehensive guide on TIG welding torch sizes! As a TIG welder, you know that precision and control are paramount. While many factors contribute to a perfect weld – your skill, the filler material, shielding gas – one often-overlooked element is the TIG torch itself. Specifically, the size of your TIG torch can significantly impact your welding experience and the quality of your finished product. But what exactly do we mean by “torch size,” and how do you pick the right one?

This guide will demystify TIG welding torch sizes. We’ll break down what determines a torch’s size, explore the different types available, and provide clear, actionable advice on how to choose the perfect torch for your specific needs. Whether you’re a beginner just starting your TIG journey or an experienced welder looking to refine your setup, understanding torch sizes will empower you to make better decisions and achieve superior welds.

Key Takeaways

• Torch size is primarily dictated by the amperage required for your welding application. Higher amperage needs generally call for larger torches to dissipate heat effectively.
• The type of metal you’re welding influences torch choice, as different metals have varying heat conductivity and require specific welding parameters.
• Consumable sizes, like collets and cups, are directly tied to the torch body size, affecting electrode stick-out and shielding gas coverage.
• Cooling method (air-cooled vs. water-cooled) is a significant factor in torch sizing, with water-cooled torches handling higher amperages and longer run times.
• Operator comfort and maneuverability play a role in torch selection, as a torch that’s too large or heavy can hinder precise control.
• Understanding the relationship between torch size, gas flow rate, and cup size is essential for proper shielding gas coverage.

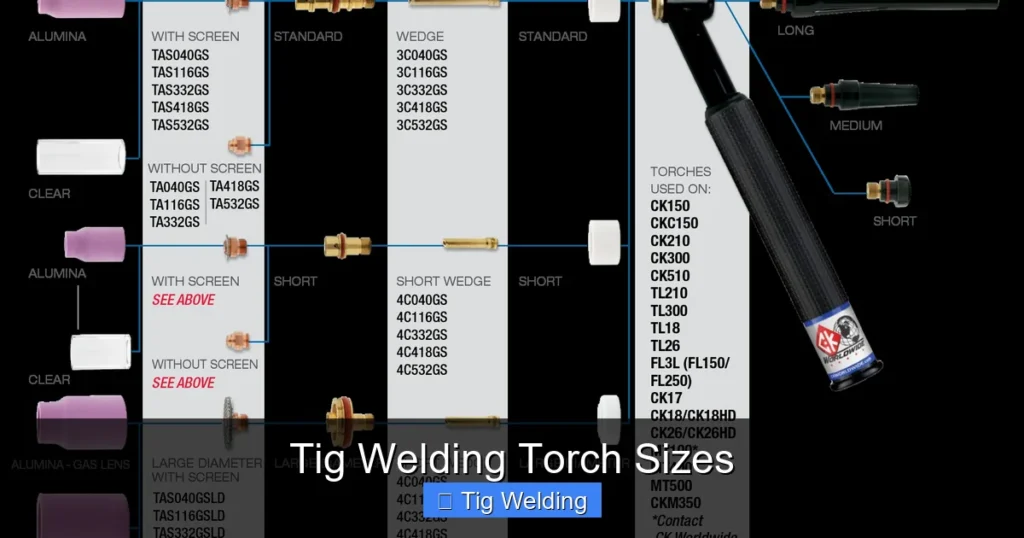

Understanding TIG Torch Anatomy and Size Indicators

Before diving into selection, let’s quickly touch on what constitutes a TIG torch and how its size is generally understood. A TIG torch has several key components: the handle, the power cable, the gas hose, the electrode holder (collet body), the collet, the tungsten electrode, the gas nozzle (cup), and a shroud. The “size” of a TIG torch isn’t a single, universally defined measurement like a shoe size. Instead, it’s a combination of factors that influence its capability and how it performs.

The most common indicators of TIG torch size are:

Amperage Rating

This is arguably the most critical factor. TIG torches are rated for a maximum amperage they can safely handle. This rating is directly related to the torch’s ability to dissipate heat. Pushing a torch beyond its amperage rating can lead to overheating, damage to the torch consumables (like the collet and cup), and even melting of the torch body. These ratings are usually found in the torch’s specifications and are often tied to the cooling method.

Torch Series or Model Number

Manufacturers often categorize their torches into series or assign model numbers that implicitly indicate size and capability. For example, popular TIG torch series like the “17,” “18,” and “26” from various manufacturers (like Weldcraft, CK Worldwide, or Lincoln Electric) correspond to different size ranges and capabilities. Generally, a higher number in these series often (but not always) indicates a larger, higher-amperage torch.

Consumable Compatibility

The size of the collet, collet body, and gas nozzle (cup) that fit into a torch are direct indicators of its size. For instance, a torch designed for a 1/8-inch collet is typically smaller and intended for lower amperages than a torch designed for a 3/16-inch or 1/4-inch collet.

Physical Dimensions (Less Common)

While not a primary classification, the physical diameter and length of the torch body and handle can also give you an idea of its size and the intended application. Larger torches tend to have more robust construction to handle higher heat and current.

Factors to Consider When Choosing TIG Torch Size

Now that we understand what defines TIG torch size, let’s delve into the key factors that will guide your selection process. Getting these right ensures optimal performance, longevity of your equipment, and the best possible weld quality.

Visual guide about Tig Welding Torch Sizes

Image source: qualityenggbaroda.com

1. Amperage Requirements

This is the most significant driver for TIG torch selection. Your welding amperage dictates how much heat is generated, and your torch must be able to handle it. Here’s a general guideline:

• Low Amperage (under 50 Amps): You can often get away with smaller, air-cooled torches, such as the 9 or 20 series. These are great for intricate work on thin materials like stainless steel, aluminum, or exotic metals where heat control is critical.
• Medium Amperage (50-150 Amps): This is where the popular 17 series air-cooled torches shine. They offer a good balance of capability and portability for a wide range of applications. For longer, continuous welding at the higher end of this range, a water-cooled torch might be more suitable.
• High Amperage (150-300 Amps): For consistent, high-amperage welding, especially on thicker materials or for extended periods, a larger, more robust torch is necessary. The 18 series (often water-cooled) or equivalent high-amperage air-cooled torches are ideal here.
• Very High Amperage (300+ Amps): For industrial applications requiring continuous high amperage welding, heavy-duty water-cooled torches (like the 20 series water-cooled or larger) are almost always required. These are designed for maximum heat dissipation.

Practical Tip: Always check the manufacturer’s specifications for the amperage rating of a specific torch model. It’s better to have a torch that’s slightly over-spec’d than one that’s constantly struggling to keep up.

2. Type of Metal and Thickness

The material you’re welding and its thickness play a crucial role. Thicker metals require more heat, thus higher amperage, which, as we’ve seen, influences torch size. Similarly, different metals have varying heat conductivity and welding characteristics.

• Thin Aluminum or Stainless Steel (under 1/8″): These materials are prone to burn-through and warping. You’ll typically use lower amperages and a smaller, more precise torch (e.g., 9 or 17 series, possibly with a smaller cup) to maintain control and minimize heat input.
• Medium Thickness Mild Steel or Aluminum (1/8″ to 1/4″): This range is well-suited for medium-sized torches (e.g., 17 series) with moderate amperage.
• Thick Steel or Aluminum (over 1/4″): These materials demand higher heat input and therefore higher amperage, requiring larger, more robust torches (e.g., 18 or 20 series, water-cooled) to handle the sustained heat.

Example: Welding delicate jewelry out of silver might call for a tiny torch with a fine tungsten for extreme precision and low heat. Welding a heavy steel frame for a bridge would necessitate a powerful, high-amperage, likely water-cooled torch.

3. Cooling Method (Air-Cooled vs. Water-Cooled)

This is a fundamental differentiator in TIG torch design and directly impacts their size and capability. The cooling method is how the torch dissipates the intense heat generated by the arc.

• Air-Cooled Torches: These torches rely on the flow of shielding gas (usually Argon) to cool the torch body and consumables.
• Pros: Simpler setup, no need for a separate water cooler or plumbing. Generally less expensive. Lighter and more maneuverable.
• Cons: Limited to lower to medium amperage ranges (typically up to 150-200 Amps for larger air-cooled models). Prone to overheating during long, continuous runs at higher amperages.
• Common Sizes: 9, 17, 20 series (air-cooled versions).
• Water-Cooled Torches: These torches have internal passages through which a coolant (usually water mixed with a specific coolant additive) circulates. The coolant is pumped from a separate water cooler.
• Pros: Can handle much higher amperage ratings (often 300 Amps and above) for extended periods without overheating. Offer greater longevity for demanding applications.
• Cons: Require a separate water cooler, more complex setup, and potentially more maintenance. Can be heavier and less maneuverable than their air-cooled counterparts.
• Common Sizes: 18, 20 series (water-cooled versions), and larger industrial models.

Recommendation: For hobbyists or those welding primarily thin to medium materials at moderate amperages, a good quality air-cooled torch (like a 17 series) is often sufficient and more cost-effective. For production work, heavy fabrication, or welding thick materials continuously, investing in a water-cooled setup is essential.

4. Electrode Size and Stick-Out

The size of the tungsten electrode you use is intrinsically linked to the amperage you’re running. Generally, higher amperages require larger diameter tungsten electrodes. The torch you choose must accommodate the collet and collet body size needed for your chosen tungsten diameter.

• Small Tungsten (e.g., 0.040″ or 1.0mm): Used for low amperages (under 50A), often with smaller torches and cups.
• Medium Tungsten (e.g., 1/16″ or 1.6mm): Versatile for a wide range of amperages (50-150A), fits well in 17-series torches.
• Large Tungsten (e.g., 3/32″ or 2.4mm): For higher amperages (150-300A), requires larger collets and torches.
• Very Large Tungsten (e.g., 1/8″ or 3.2mm): For very high amperages (300A+), needs robust torches and consumables.

The “stick-out” – how far the tungsten electrode protrudes from the gas nozzle – is also critical. A longer stick-out is needed for reaching into tight corners or for visibility on certain joints, but it can also reduce gas coverage and increase tungsten contamination. A torch that allows for adjustable stick-out and has a suitable cup size will be essential for this.

5. Gas Flow and Cup Size

Proper shielding gas coverage is vital for TIG welding. The gas nozzle, or “cup,” directs the inert gas to protect the molten weld pool from atmospheric contamination. The size of the cup is determined by the torch size and the welding application.

• Smaller Cups (e.g., #4, #5, #6): Typically used with smaller torches and for precision work on thin materials. They provide a more focused gas stream.
• Medium Cups (e.g., #7, #8): Common with 17-series torches and for general-purpose welding on medium-thickness materials.
• Larger Cups (e.g., #10, #12, #14): Used with larger torches and for higher amperages or when wider gas coverage is needed, such as on aluminum or for out-of-position welding. They require higher gas flow rates.

The flow rate of your shielding gas needs to be adjusted to match the cup size. Too little gas leads to porosity; too much gas can cause turbulence and also lead to contamination. A larger cup generally requires a higher flow rate (e.g., 20-30+ CFH) than a smaller cup (e.g., 10-20 CFH).

Tip: For excellent visibility and gas coverage, especially on aluminum, consider using a gas lens setup. Gas lenses fit inside the collet body and allow for a much longer tungsten stick-out while maintaining excellent shielding. They are available for most standard torch sizes.

6. Operator Comfort and Ergonomics

While perhaps less technical, operator comfort is a crucial factor, especially for long welding sessions. A torch that feels good in your hand, is well-balanced, and allows for easy maneuverability can make a significant difference in your productivity and weld quality.

• Weight: Water-cooled torches, being larger and containing coolant, are typically heavier. If you’re doing a lot of overhead or out-of-position work, the weight can become fatiguing.
• Grip: Different torches have different handle designs. Some are thicker, some are thinner. Find one that fits your hand comfortably.
• Flexibility: Some torches offer flex heads, allowing you to adjust the angle of the torch head for better access to difficult joints.

Recommendation: If possible, try holding different torch models before purchasing. Many welding supply stores will have display models you can handle. Consider purchasing a lighter-duty torch for intricate work and a more robust one for general fabrication if you do a variety of tasks.

Common TIG Torch Series and Their Typical Applications

Let’s look at some of the most common TIG torch series and their general applications to give you a better frame of reference:

Visual guide about Tig Welding Torch Sizes

Image source: st.hotrod.com

9 Series Torches

These are among the smallest and lightest TIG torches. They are typically air-cooled and rated for lower amperages (around 125 Amps). They use smaller consumables and are ideal for precision work on thin materials, delicate repairs, and situations where extreme maneuverability is needed.

17 Series Torches

The 17 series is a very popular and versatile choice. These torches are available in both air-cooled and water-cooled versions. The air-cooled 17 series is rated for around 150 Amps, making it suitable for a wide range of general welding tasks on thin to medium-thickness materials. The water-cooled version can handle higher amperages.

18 Series Torches

These are larger, heavier-duty torches, almost exclusively water-cooled, and designed for high-amperage applications (often 300 Amps and above). They are built for continuous, high-heat welding on thicker metals and are common in industrial settings.

20 Series Torches

The 20 series is another robust, high-amperage option. They are typically water-cooled and offer excellent heat dissipation for demanding applications, often similar in capability to the 18 series but with different ergonomic designs.

Note: Brands may have their own naming conventions, but these series represent common industry standards for size and capability.

Troubleshooting Common Torch Size Issues

Sometimes, even with careful selection, you might encounter issues related to your torch size. Here are a few common problems and their potential solutions:

Visual guide about Tig Welding Torch Sizes

Image source: pluspng.com

Problem: Torch Overheating

Cause: Pushing an air-cooled torch beyond its amperage rating; insufficient gas flow for an air-cooled torch; clogged water lines or pump failure in a water-cooled system; worn-out consumables that don’t dissipate heat well.

Solution: Ensure you’re within the torch’s amperage rating. Increase gas flow for air-cooled torches if appropriate for the cup size. Check and clean water lines and ensure the pump is working for water-cooled torches. Replace worn collets, collet bodies, or cups.

Problem: Poor Gas Coverage / Porosity

Cause: Cup is too small for the weld puddle; insufficient gas flow rate; cup is damaged or cracked; excessive draft or fan disturbing the gas shield; using a standard setup when a gas lens would be more beneficial for longer stick-out.

Solution: Use a larger cup if you’re welding wider beads or thicker materials. Increase gas flow rate (up to the recommended level for your cup size). Inspect and replace the cup. Shield the welding area from drafts. Consider using a gas lens, especially for aluminum.

Problem: Difficulty Reaching Certain Areas

Cause: Torch is too bulky; electrode stick-out is too short; the torch head angle is not optimal.

Solution: Consider a smaller, more maneuverable torch for intricate work. Experiment with tungsten stick-out (within safe limits). Some torches have flex heads for better positioning.

Conclusion

Selecting the correct TIG welding torch size is a fundamental step towards achieving professional-quality welds. It’s not just about picking a torch that looks good; it’s about understanding how amperage, material, cooling, and consumables all interact to create the perfect welding environment. By considering your specific needs – the amperage you’ll be running, the types and thicknesses of metals you’ll be welding, and whether air or water cooling is more appropriate – you can confidently choose a torch that will enhance your control, improve your weld quality, and make your TIG welding experience more enjoyable and productive.

Don’t underestimate the power of the right tool. Investing time in understanding TIG torch sizes will pay dividends in every weld you make. Happy welding!
