Gasless MIG welding wire for stainless steel offers a convenient, portable solution for outdoor and windy conditions. This guide walks you through setup, technique, and best practices to achieve strong, clean welds without shielding gas.
Key Takeaways
- Gasless MIG welding uses flux-cored wire that generates its own shielding gas, eliminating the need for external gas cylinders.
- It’s ideal for outdoor welding where wind can disrupt traditional gas shielding, making it perfect for farm, automotive, and repair work.
- Stainless steel requires specific flux-cored wires labeled as “gasless” or “self-shielding” to prevent corrosion and maintain material integrity.
- Proper machine settings are crucial—voltage, wire speed, and polarity must match the wire and material thickness.
- Cleanliness is essential—always remove oil, rust, and paint from the stainless steel before welding to avoid defects.
- Use a push technique when welding to ensure proper penetration and a clean bead appearance.
- Post-weld cleaning improves appearance and corrosion resistance—remove slag and use a stainless steel brush or pickling paste.
What Is Gasless MIG Welding Wire for Stainless Steel?
Gasless MIG welding, also known as flux-cored arc welding (FCAW) without external shielding gas, uses a special wire filled with flux. When heated, the flux creates a protective gas shield around the weld pool and forms a slag layer that prevents contamination. This makes it possible to weld stainless steel without carrying heavy gas cylinders—ideal for remote locations or windy environments.
Unlike solid MIG wire, which requires a constant flow of shielding gas (like argon or argon-CO2 mix), gasless flux-cored wire is self-shielding. For stainless steel, you’ll need a wire specifically designed for stainless applications, such as E308LT or E309LT flux-cored wires. These wires match the alloy composition of common stainless steels and help maintain corrosion resistance.
Why Choose Gasless MIG for Stainless Steel?

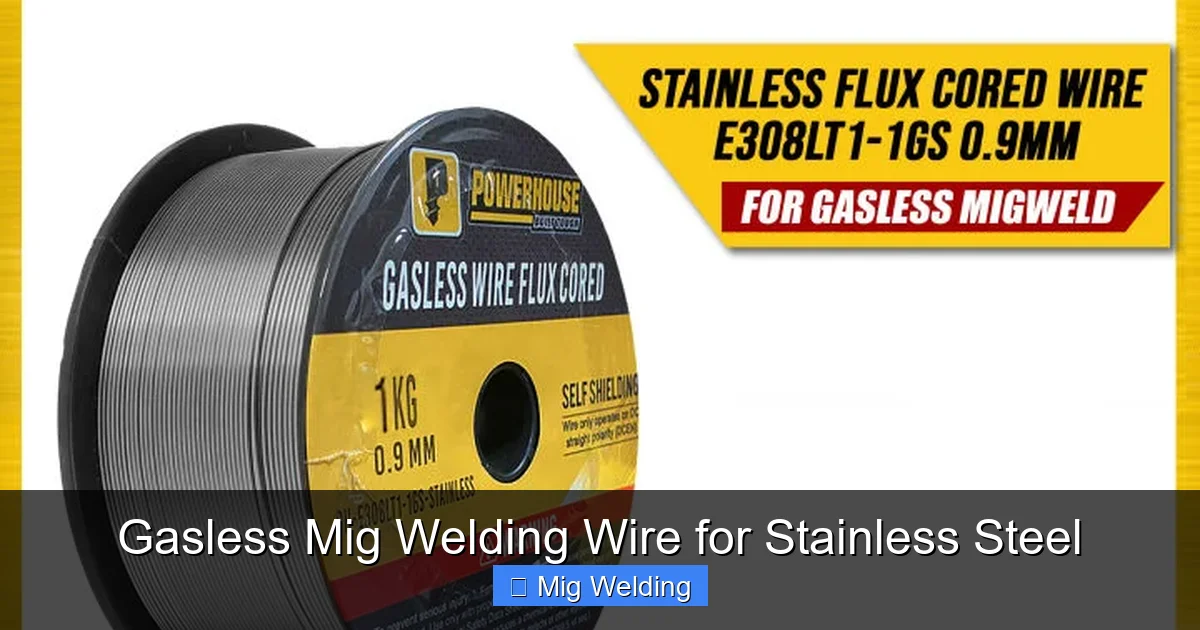

Visual guide about Gasless Mig Welding Wire for Stainless Steel
Image source: img.lazcdn.com
Gasless MIG welding offers several advantages, especially when working with stainless steel:
- Portability: No gas tanks mean you can weld almost anywhere—perfect for field repairs, farms, or construction sites.
- Wind resistance: Outdoor welding is much easier since wind won’t blow away the shielding gas.
- Cost-effective: You save money on gas refills and equipment.
- Deep penetration: Flux-cored wires often provide better penetration than solid wires, especially on thicker materials.
However, it’s not perfect. Gasless welding produces more spatter and slag, and the weld appearance may not be as smooth as gas-shielded MIG. But for functional, durable welds on stainless steel, it’s a reliable choice.
Choosing the Right Gasless MIG Wire

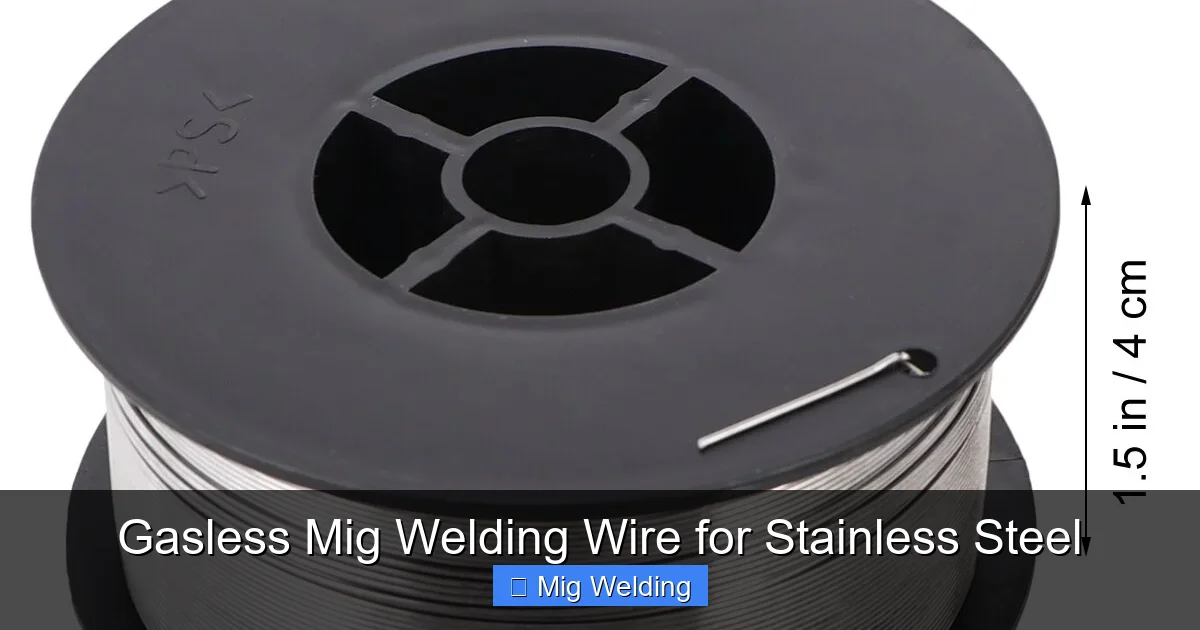

Visual guide about Gasless Mig Welding Wire for Stainless Steel
Image source: 5.imimg.com
Not all flux-cored wires are suitable for stainless steel. You need a wire that matches the base metal and provides corrosion resistance.
Common Gasless Stainless Steel Wires
- E308LT: Best for welding 304 and 304L stainless steel—common in kitchen equipment, food processing, and architectural applications.
- E309LT: Used for joining stainless steel to mild steel or for welding 309 stainless. Offers higher ductility and crack resistance.
- E316LT: Ideal for marine environments or chemical exposure due to added molybdenum for extra corrosion resistance.
Always check the wire label to confirm it’s rated for stainless steel and is self-shielding (no gas required). Avoid using carbon steel flux-cored wires—they will corrode and weaken the weld.
Setting Up Your MIG Welder for Gasless Welding
Proper setup is critical for success. Even small mistakes can lead to poor welds or machine damage.
Step 1: Switch to Flux-Cored Mode
Most MIG welders have a setting for flux-cored welding. This adjusts the power delivery and often reverses the polarity.
Step 2: Reverse the Polarity
Gasless flux-cored welding requires DC electrode negative (DCEN), also called straight polarity. This means the electrode (wire) is negative, and the workpiece is positive. Check your welder’s manual—many machines have a polarity switch or require you to swap the cables.
Step 3: Install the Correct Drive Roll
Flux-cored wires are softer than solid wires and can be damaged by V-groove drive rolls. Use U-groove or knurled drive rolls designed for flux-cored wire to prevent crushing or feeding issues.
Step 4: Adjust Voltage and Wire Speed
Start with the manufacturer’s recommended settings for your wire diameter and material thickness. For example:
- 1/8-inch (3mm) stainless steel: 18–20 volts, wire speed 200–250 inches per minute (IPM)
- 1/4-inch (6mm) stainless steel: 20–22 volts, wire speed 250–300 IPM
Fine-tune as needed. Too low voltage causes poor penetration; too high causes excessive spatter and burn-through.
Preparing the Stainless Steel for Welding
Stainless steel is prone to contamination, so preparation is key.
Clean the Surface
Use a stainless steel wire brush (dedicated to stainless only—never used on carbon steel) to remove rust, scale, or oxide. Wipe the area with acetone or a degreaser to eliminate oil, grease, or fingerprints. Even small contaminants can cause porosity or weaken the weld.
Bevel Thick Materials
For materials over 1/8 inch thick, consider a slight bevel (V-groove) to ensure full penetration. Use a grinder or plasma cutter for best results.
Clamp and Fit-Up
Secure the pieces with clamps or magnets. Gaps should be minimal—ideally less than 1/16 inch. Poor fit-up leads to lack of fusion.
Welding Technique: Step-by-Step
Now that everything is set up, it’s time to weld.
Step 1: Position the Gun
Hold the MIG gun at a 10–15 degree angle, pointing in the direction of travel. Keep the nozzle ½ to ¾ inch from the workpiece.
Step 2: Use the Push Technique
Unlike solid wire MIG, where you typically drag (pull), gasless flux-cored welding works best with a push technique. Push the gun away from the weld pool. This helps the flux clean the weld and improves visibility.
Step 3: Maintain a Short Arc Length
Keep the arc tight—just long enough to see the puddle. Too long an arc causes spatter and poor shielding. Too short can lead to stubbing.
Step 4: Control Travel Speed
Move steadily but not too fast. A good weld has a consistent bead width and slight crown. If the bead is too flat, you’re going too slow; if it’s ropey or uneven, you’re too fast.
Step 5: Watch for Slag
Flux-cored welding produces slag that covers the weld. Don’t weld over slag—it can become trapped. Chip it off between passes if doing multi-pass welds.
Post-Weld Cleaning and Finishing
The slag left behind protects the weld as it cools but must be removed afterward.
Remove Slag
Use a chipping hammer to knock off the slag. Then, scrub the weld with a stainless steel wire brush to remove any remaining residue. This step is crucial—trapped slag can lead to corrosion.
Inspect the Weld
Look for cracks, porosity, or undercut. A good gasless weld on stainless steel should have a smooth, slightly convex bead with minimal spatter.
Optional: Passivation or Pickling
For critical applications (like food or medical equipment), use a stainless steel pickling paste to restore the passive oxide layer. This improves corrosion resistance and gives a clean, silver finish.
Troubleshooting Common Issues
Even with proper technique, problems can occur. Here’s how to fix them:
Porosity (Air Pockets in the Weld)
- Cause: Contaminated base metal, moisture in the wire, or poor flux coverage.
- Fix: Clean the metal thoroughly, store wire in a dry place, and ensure proper travel speed.
Excessive Spatter
- Cause: Too high voltage, long arc length, or incorrect polarity.
- Fix: Reduce voltage, shorten the arc, and double-check polarity settings.
Lack of Fusion
- Cause: Low voltage, slow travel speed, or poor joint fit-up.
- Fix: Increase voltage slightly, clean the joint, and ensure tight fit-up.
Wire Feeding Problems
- Cause: Wrong drive roll, kinked liner, or dirty contact tip.
- Fix: Use knurled drive rolls, inspect the liner, and replace the contact tip if worn.
Safety Tips for Gasless MIG Welding
Welding is safe when done correctly—follow these guidelines:
- Wear a welding helmet with auto-darkening lens (shade 10–13).
- Use flame-resistant clothing, gloves, and boots.
- Work in a well-ventilated area—flux fumes can be harmful.
- Keep a fire extinguisher nearby, especially when welding outdoors.
- Never weld on containers that may have held flammable materials.
Conclusion
Gasless MIG welding wire for stainless steel is a practical, versatile solution for many applications. While it requires attention to setup, technique, and cleanliness, it delivers strong, durable welds without the hassle of gas cylinders. Whether you’re repairing a stainless steel trailer, building a custom exhaust, or working on farm equipment, mastering gasless MIG opens up new possibilities. With the right wire, proper machine settings, and good welding habits, you can achieve professional-quality results—anytime, anywhere.
